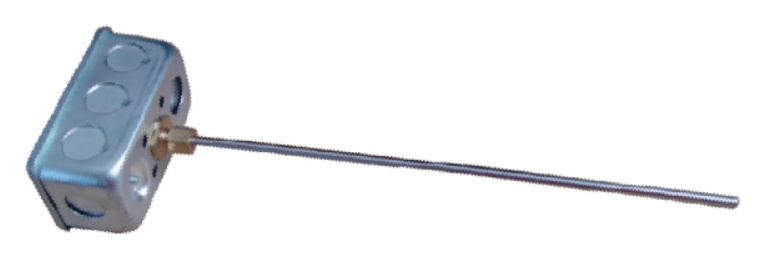

Savant® Commercial Plenum Remote Temperature Sensor

As the first home automation company to embrace mobile technology, we understood early that the customer experience could extend beyond the home and open new possibilities for control.

Over the years, our technology has evolved and our company has grown, but our goal remains the same. We've become the home automation brand of choice for the world's most luxurious homes, castles, and even yachts.

Savant's premium home automation systems offer personalization features that make the difference between a smart home and a Savant Home.

Plenum-rated remote temperature sensor for use in commercial installations.

Environmental

• Temperature: 32° to 158°F

Cable Requirements

• Cat 5 (24 AWG) 500 feet (152.4 m) maximum

Sensor Property & Features

• Temperature Range (Thermistor): -94° to 302°F
• Temperature Accuracy (Thermistor): +/- 0.36°F
• Probe Length: 12 inches (304.8 mm)
• Probe Material: Stainless Steel
• Probe Wire Length: 8 inches (203.2 mm)
• Probe Housing (l x w): 4 inches (101.6 mm) x 2.125 inches (53.975 mm)
• Probe Housing Depth: 1.625 inches (41.28 mm) Including Cover
• Probe Housing Depth: 1.5 inches (38.1 mm) No Cover
• Probe Wire Properties: FT4, 176°F (80°C), 600V

Compliance - RoHS Compliant

Basic warranty period is two (2) years excluding misuse defined as abuse, accidental damage, modifications, improper wiring, improper repair, incorrect repair, and operation outside specified operating temperatures and humidity.
