Savant's HDBaseT 4k 40m extension offers full HDMI 2.0 compliance supporting HDR (High Dynamic Range) or 4K@60Hz with 4:4:4 chroma sampling and can transport Ultra HD/4K, multi-channel audio, and High Dynamic Range (10 bits support) content over a single CATx cable.  Additionally, the low profile "slim box" enclosure design make it ideal for limited space installation environments, such as behind flat panel displays and video walls.

Savant's HDBaseT 4k 40m extension offers full HDMI 2.0 compliance supporting HDR (High Dynamic Range) or 4K@60Hz with 4:4:4 chroma sampling and can transport Ultra HD/4K, multi-channel audio, and High Dynamic Range (10 bits support) content over a single

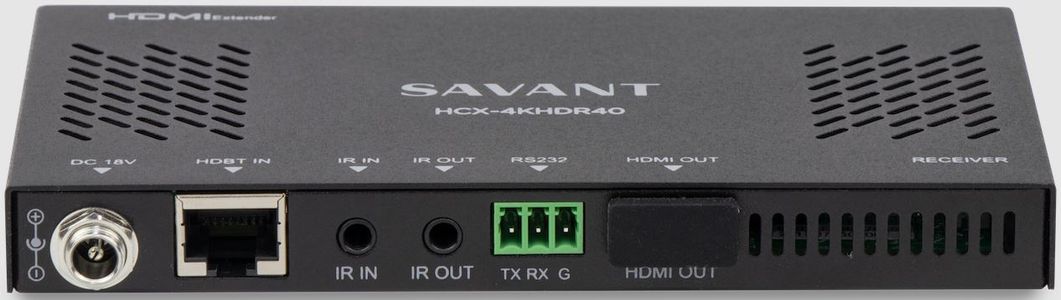

Savant HDBaseT 4K 40M Extension

Supports resolutions up to 4K@60Hz (4:4:4)

Supports HDR (High Dynamic Range) formats

Extends HDMI up to 130 ft. (40m) at Ultra HD/4K and up to 230 ft. (70m) at 1080p using Cat6a or Cat7

Extends HDMI up to 115 ft. (35m) at Ultra HD/4K and up to 197 ft. (60m) at 1080p using Cat6

2-Way Power over HDBaseT (PoH). Power adapter can be connected to either Extender

General Specs
Depth (in.)	2.92
Width (in.)	5.37
Height (in.)	0.6
Outdoor Approved	No
Smart Compatible	No
Wifi Capable	No
Bluetooth Capable	No
HDMI Outputs	1
HDMI Inputs	1
Color Finish Name	Black
Manufacturer Warranty	2 Year
