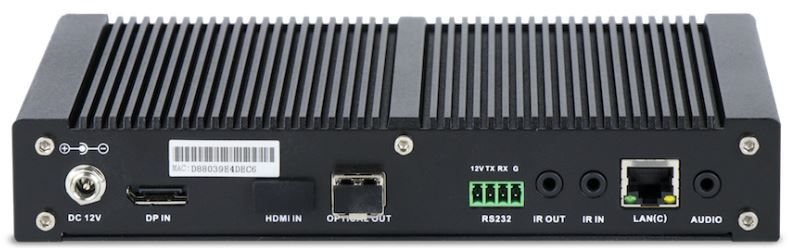

Savant IP Video Single Input Transmitter

Savant

Model #:

PAV-VIMVP1F-10

Model #: PAV-VIMVP1F-10
1199635
Savant
$99,999.00

At a Glance

Product Dimensions 1.38"h x 8.47"w x 5.47"d

The single input delivers the same video performance of the inputs on the PAV-VIM8/4S in a stand alone format. Video comes in with pristine clarity with zero frame latency. The integrated video processor and scalar delivers unmatched, immersive viewing experience supporting the most popular video formats including 4K60 4:4:4 HDR. The built-in video scaler will seamlessly downscale sources to legacy HD displays. The ultra-high performance architecture delivers a scalable software-defined matrix. Simply add receiver endpoints as required.Read More

Call for Best Price

Get to know this product.

Product Overview

Product Overview

1 HDMI input with SPF+ connects to the 10Gb Network

Advanced Video Processing / Multi-Source Video Compositing

Built-in 4K60 4:4:4 scalar, downscales to 1080p or other resolutions

Includes analog audio outputs, HDMI inputs must be set to PCM audio

Each input includes one IR and one RS232 control port (total of 4 IR and 4 RS232)

Additional 1Gigabit Ethernet Network Data Bandwidth, connect Any Ethernet Network Compliant Device. Shares the 10Gb network link with 1Gb of reserved bandwidth

Simple to configure, deploy and manage using Blueprint and System Monitor

Includes hardware for video processing and tiling to be added in a future release.

Environmental

Multiple units may be connected over the 10Gb network to scale the number of video inputs into the system.

Temperature: 32° to 104° F (0° to 40° C)

Humidity: 10% to 90% (non-condensing)

Power

Input Power: 12V DC 3A

Nominal Power: 16W

Maximum Power: 36W

Compliance

Safety & Emissions: FCC Part 15B | CE Mark | C-Tick

RoHS Compliant

Minimum Supported Requirements

Release: Savant OS: da Vinci 9.3.4 or Higher

Host: Requires Pro, Super Pro, or Smart(SHC/SHR-2000) Host

Useful Documents
Deployment Guide
Specifications

General Specs

Product Weight (lbs.)3.3
Depth (in.)5.47
Width (in.)8.47
Height (in.)1.38
Voltage12
Outdoor ApprovedNo
Wattage36
Amp3
HDMI Inputs1
Color Finish NameBlack
Manufacturer Warranty2 Year
WarningProposition 65 Warning for California Residents
