The 4K UHD Single Output IP Video Receiver with Control provides a low cost option for adding zones where video processing is not a requirement to a Savant IP Video system. Industry leading video quality and scalability provided by 10GbE switching, with support for power over Ethernet (PoE).

The 4K UHD Single Output IP Video Receiver with Control provides a low cost option for adding zones where video processing is not a requirement to a Savant IP Video system. Industry leading video quality and scalability provided by 10GbE switching, with s

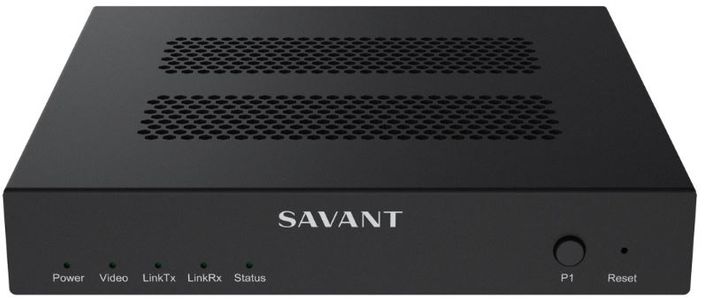

Savant IP Video Single Output Receiver

1 HDMI output with RJ45 connection to the 10Gb Network

Includes analog audio outputs, HDMI inputs must be set to PCM audio

Includes one IR and one RS232 control port

Additional 1Gigabit Ethernet Network Data Bandwidth, connect Any Ethernet Network Compliant Device. Shares the 10Gb network link with 1Gb of reserved bandwidth

Simple to configure, deploy and manage using Blueprint and System Monitor

Power over ethernet (POE+, IEEE 802.3at))

General Specs
Product Weight (lbs.)	1.35
Depth (in.)	0.98
Width (in.)	6.3
Height (in.)	5.72
Voltage	12
Outdoor Approved	No
Amp	2
4k Ultra Hd Compatible	Yes
Manufacturer Warranty	2 Year
Color Finish Name	Black
Shipping Height (in.)	3.63
Shipping Depth (in.)	8.5
Shipping Width (in.)	15.5
