Savant® SmartControl RS485 Wi-Fi Shade Controller

As the first home automation company to embrace mobile technology, we understood early that the customer experience could extend beyond the home and open new possibilities for control.

Over the years, our technology has evolved and our company has grown, but our goal remains the same. We've become the home automation brand of choice for the world's most luxurious homes, castles, and even yachts.

Savant's premium home automation systems offer personalization features that make the difference between a smart home and a Savant Home.

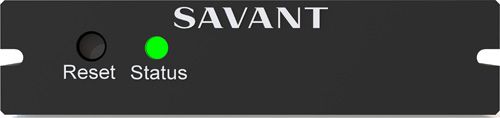

The SmartControl RS485 wireless controller features a dedicated RS485 port.  This product has been specifically designed to work with Savant Shade products to simplify shade installs.

• Dedicated native RS485 port
• Powers off 24V to provide easy integration with shades.
• Ultra-compact, surface mount design

Included Items:

• (1) SmartControl Controller (SSC-W485-00)
• (1) Mounting Plate
• (1) 6-pin Screw Down Plug-in Connector
• (1) 4-pin Screw Down Plug-in Connector
• (1) Cable Tie

Environmental

• Temperature 32° to 104° F (0° to 40° C)
• Humidity 10% to 80% RH (non-condensing)

Power

• Input Power 24V DC 0.2A
• Max Power 6 watts

Standards

• Wireless Wi-Fi (802.11 b/g/n 2.4 GHz)

Compliance

• Safety and Emissions FCC Part 15 | CE Mark | C-Tick
• RoHS Compliant

Minimum Supported Release:

• Savant OS da Vinci 8.5

Basic warranty period is two (2) years excluding misuse defined as abuse, accidental damage, modifications, improper wiring, improper repair, incorrect repair, and operation outside specified operating temperatures and humidity.

Specifications
